See Your Sound
Get a deeper understanding of your sound than ever before with VISION 4X,
a powerful visual analysis plugin with maximum precision.
Developed in partnership with electronic music trio Noisia, VISION 4X gives you the insights you need to prepare your tracks ready for competition with today’s top mixes, and the clarity to make the right mixing decisions with confidence – however modest your setup.
Customisable Layout
4 Real-Time Analysers
3 FFT Sizes
Presets by NOISIA
10 Colour Maps
17 Reference Curves
Four Visual Dimensions

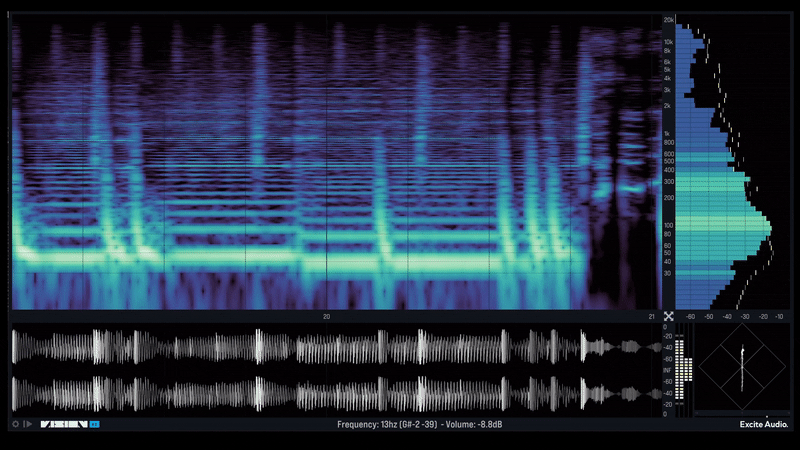

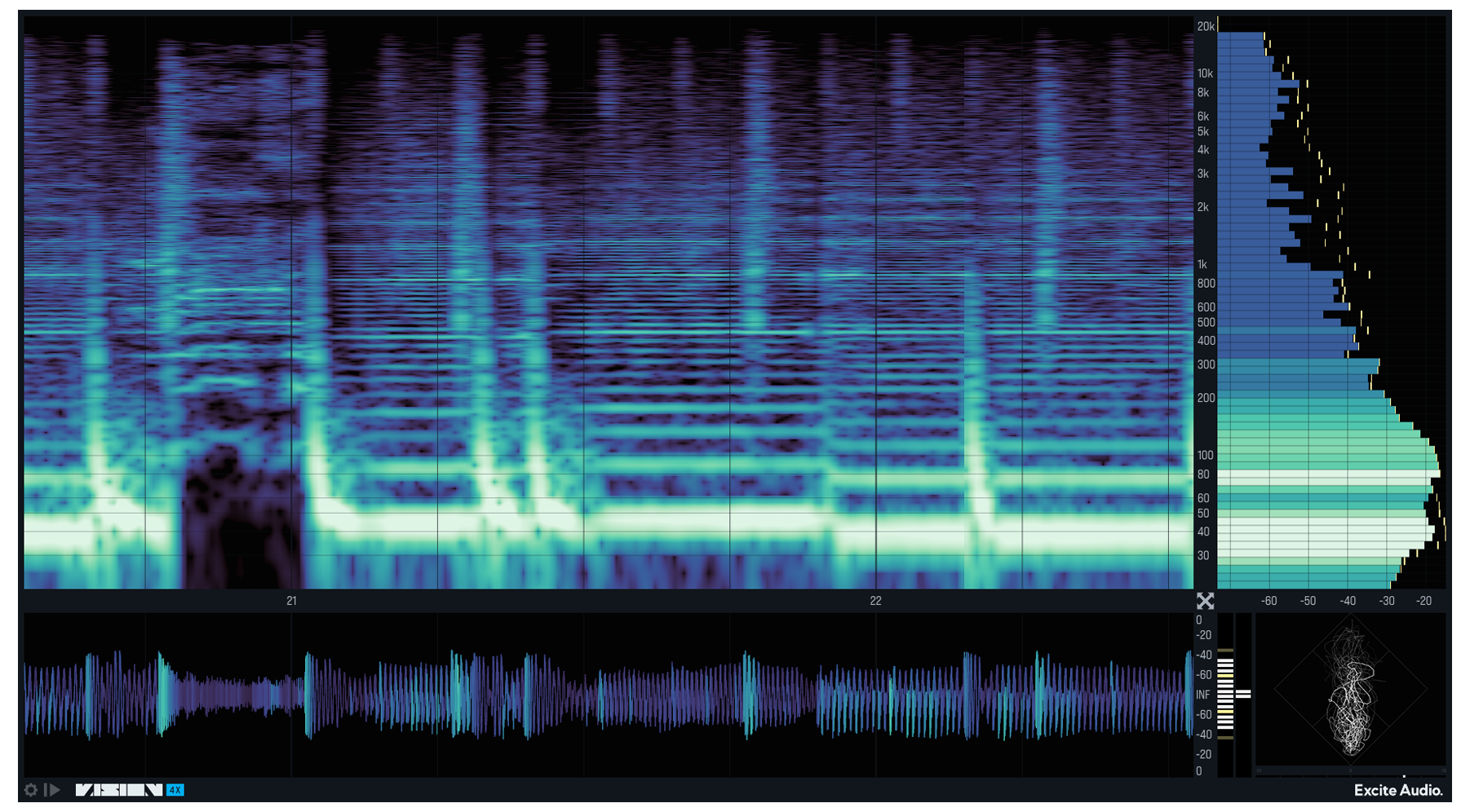

VISION 4X combines four custom-built visual analysis tools that work simultaneously in real-time, including a spectrogram, bar graph, waveform and phase correlation meter.
Each analyser is displayed in its own resizable window, allowing you to scale the plugin’s UI to suit your workflow.
Customisable Timeframe
Perfectly sync VISION 4X to your DAW and customise the analysis timeframe for any project. Choose to run the analysers continuously, or loop a section of time and let them overlay.
Alternatively, if you want to hone in on a particular sound, set the plugin to retrigger whenever a MIDI signal is received – ideal for comparing kicks in real-time.
Spectrogram

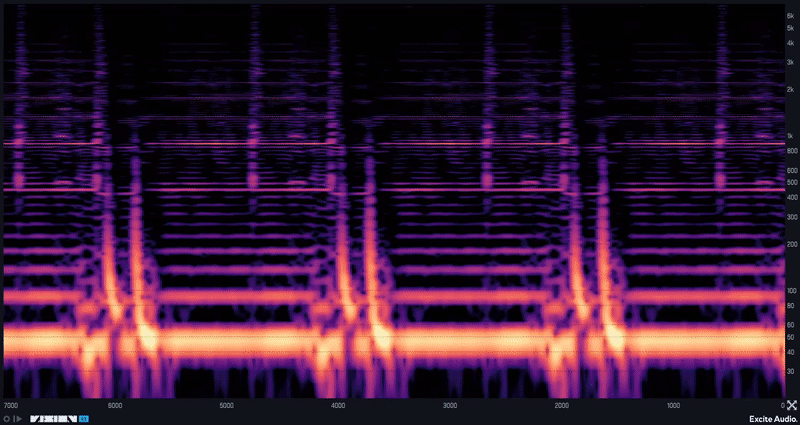

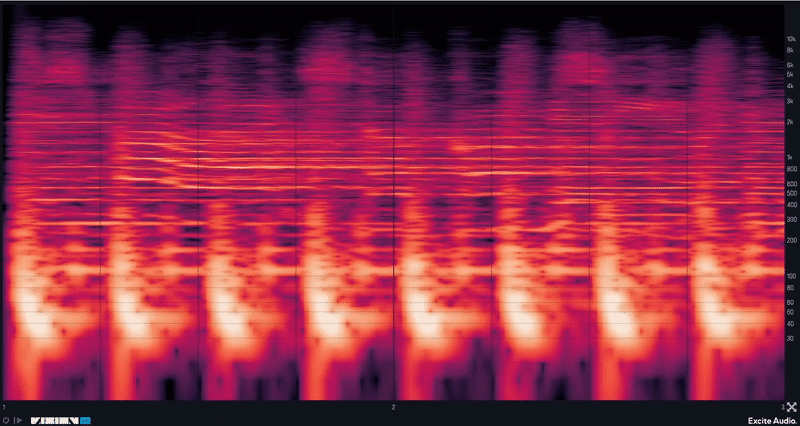

VISION 4X’s powerful spectrogram provides enhanced low-end resolution, offering access to more information about the frequencies in your mix. Freeze the visualiser for a snapshot of your sound, zoom in to get a close-up of the frequency spectrum, and navigate the display to discover details that otherwise could be missed.
Colour Maps
Customise the spectrogram’s display with ten Colour Maps to choose from, each one specifically selected for maximum information density when analysing sound.
Brightness can be biased towards the low or high frequencies using Map Bias, and Range Hz and Range Db sliders give you total control over the frequency and volume range of the display.
A selection of visualisation modes allows you to see your sound in whatever way you require. Transient mode is designed for showing the start and end point of notes, Harmonic mode gives a more detailed look at the harmonic content of a signal, and All-round offers the best solution for a general overview of your audio.
Bar Graph

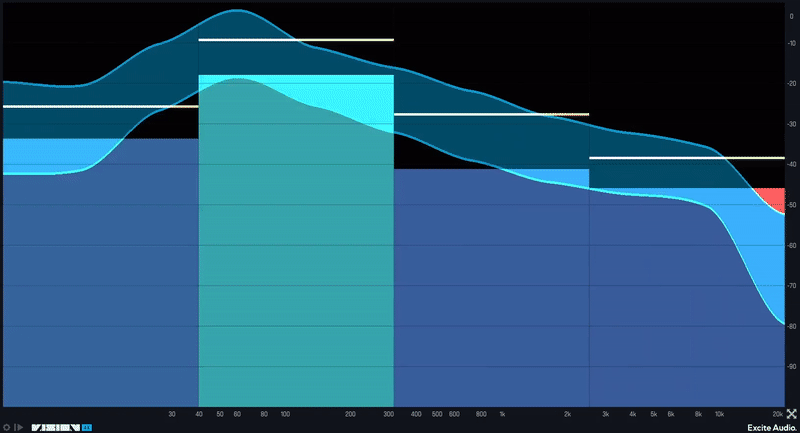

VISION 4X’s bar graph is a fully customisable spectrum analyser that can highlight the gain levels of the sustained frequencies in your sound. Choose to get an overview of how frequencies are distributed in your mix, or an intricate analysis, by varying the number of bars shown in the graph. The Speed of the bar graph’s movement can be adjusted to run alongside your track however you see fit, and you can easily spot peak levels using the Peak Hold sustain control.
VISION 4X also has a Spectrum Highlight feature that indicates resonant frequencies, which can be tailored for sensitivity and matched with the colour coding of the spectrogram.
Understand and improve the balance of your mix by comparing it with reference curves from a range of genres, generated through an in-depth analysis of hundreds of tracks. Each reference curve has an average and a maximum value line, with overshooting clearly indicated in red – the perfect visual feedback tool for assurance in your mixing decisions.
Waveform

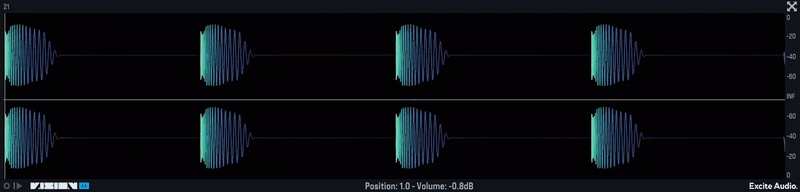

As well as the spectrogram and bar graph, VISION 4X features a waveform analyser that enables you to carefully inspect your sound source. Alongside the plugin's other visualisers, you can use the waveform analyser to magnify soundwaves and gain valuable pitch, volume and timing information, with an intuitive colour-coded display.
The waveform analyser is accompanied by VU and RMS metering tools, allowing you to assess volume and loudness levels with ease. Keep track of the headroom for your mix with an overshoot highlighting feature that informs you when levels are going above 0dB.
Phase Correlation Meter

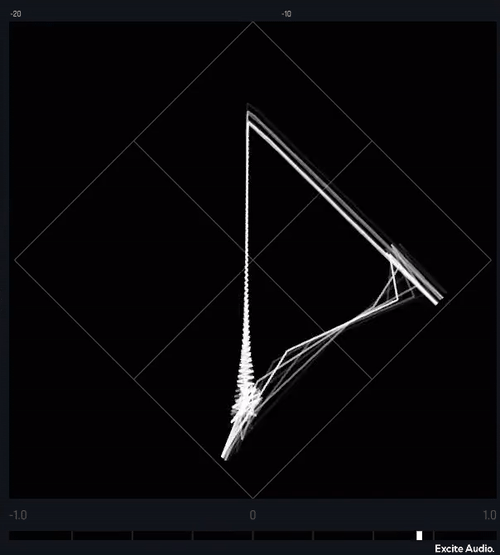

Explore the stereo dimensions of your sound with VISION 4X’s phase correlation meter, a tool that gives you an impression of your stereo spread and helps you to determine phase differences between the left and right channels.
Any phase issues are clearly displayed along the centre line, helping you to maintain alignment and prevent any loss of audio when you’re converting to mono.
Features
4 real-time, high-definition visual analysers
Customisable and resizeable layout
10 Colour Maps designed for maximum information density
Customisable Frequency Range and dB Range
Freeze and Zoom-In functionality
Focus the colour map on specific frequencies with Map Curve/Tone Bias
Sync the analysis timeframe to your DAW
2 Display Modes - Continuous visualisation or Overlay for visualisation that loops a timeframe and redraws the analysis.
MIDI retriggering - Restarts the analysis whenever a MIDI signal is received
Information Bar shows pitch, note, dB and timing information on hover (A3 +7ct, -3.2db, bar 2.1.1)
Stereo/Left/Right/Mid/Side modes
Presets designed by Noisia
M1 Native
Standalone mode
Spectrogram
High definition visualiser designed with enhanced low-end resolution
3 FFT sizes for Transient, Harmonic and All-round analysis
Freeze, Zoom, Scroll functionality
Customisable Frequency Range and dB Range
Bar Graph
Reference curves made by Noisia
Spectrum Highlight shows sustained and resonant frequencies
Adjustable Bar Number (from 4 bars to a Line graph)
Peak dB values with adjustable Peak Hold time.
Waveform
Detailed waveform analyser
Frequency detection with pitch colour mapping
Overshoot highlighting above 0dB
VU and RMS meters
Phase Correlation Meter
Stereo width and phase alignment metering
Oscilloscopic visualisation
Gain Highlight
System Requirements
macOS
macOS 10.15 or higher (Intel / Native Apple Silicon supported)
Plugin Formats: VST, VST3, AU, AAX, Standalone
DAW's Supported: Ableton Live, Pro Tools, Logic Pro, FL Studio, Cubase, Nuendo, Reaper, Reason + more.
Compatibility: 64-bit compatible only.
Windows
Windows 7 or higher
Plugin formats: VST, VST3, AAX, Standalone
DAWs supported: Ableton Live, Pro Tools, Logic Pro, FL Studio, Cubase, Nuendo, Reaper, Reason + more.
Compatibility: 64-bit and 32-bit compatible.
